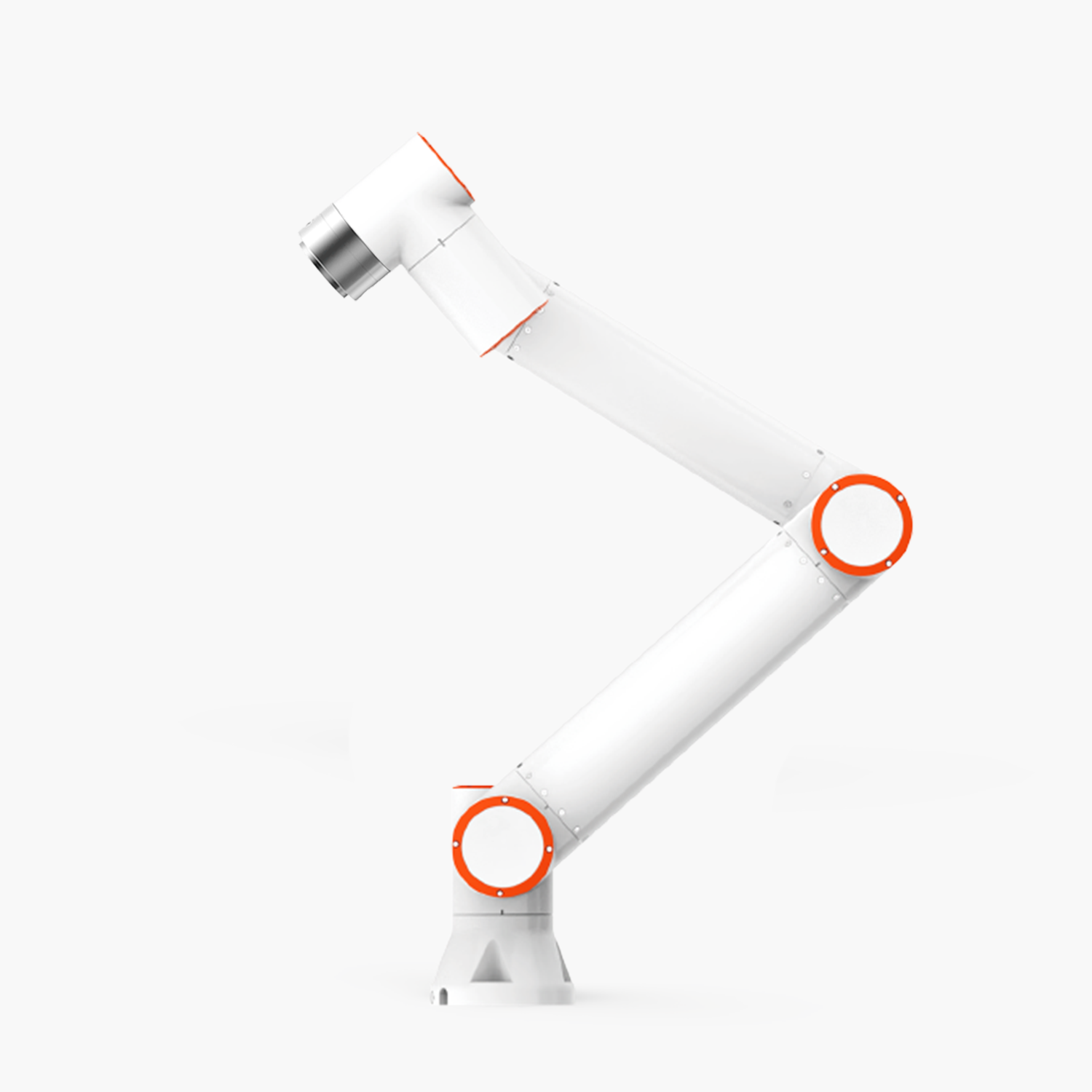

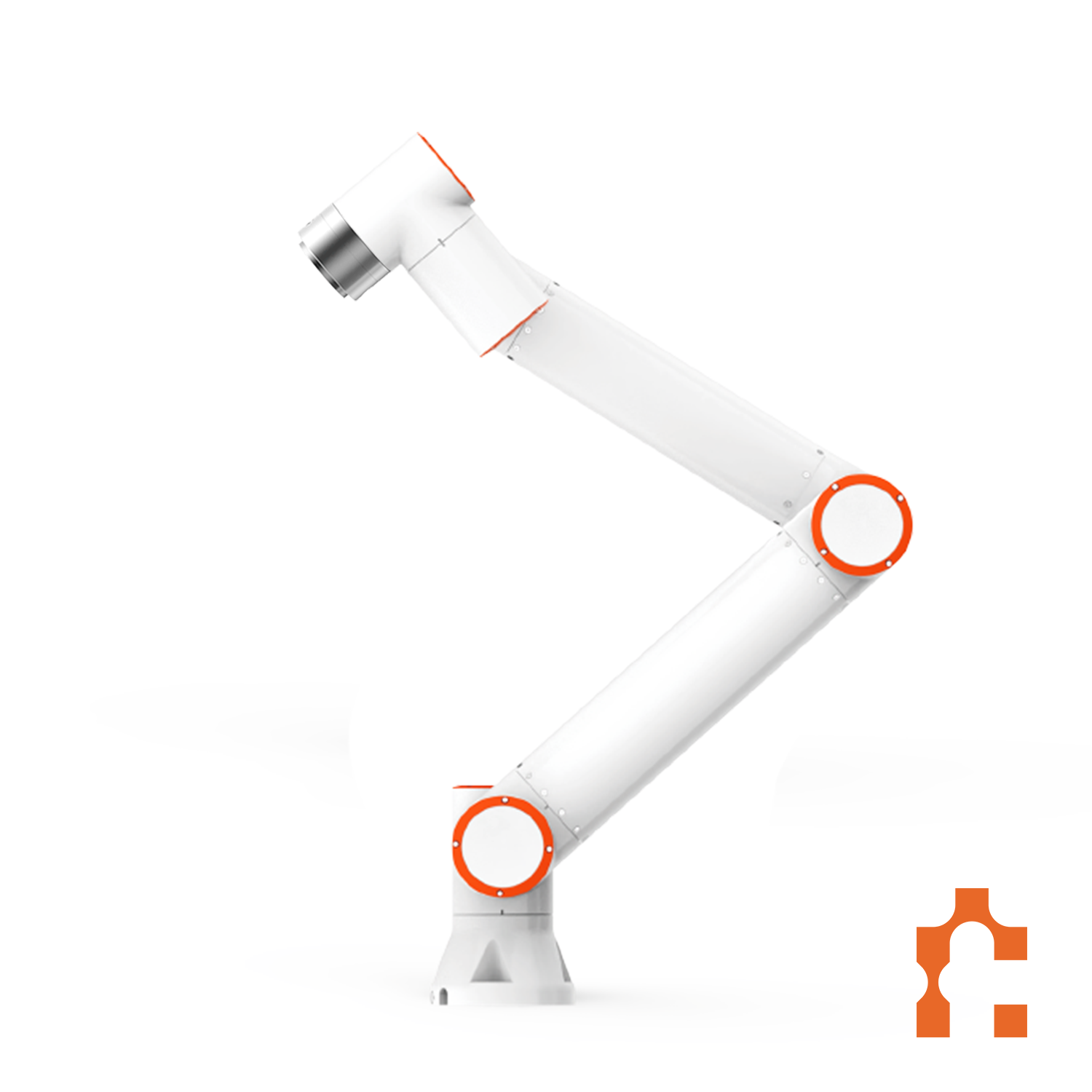

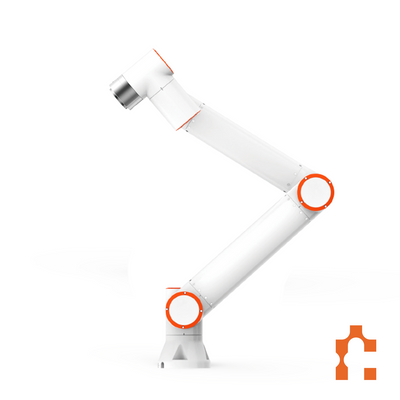

Fairino FR3-WML

The FAIRINO FR3-WML is a powerful 6-axis collaborative robot arm (cobot), designed for flexibility and ease of use. What makes this cobot special is its affordability, offering the same performance as competitors at a much lower price. The FR3-WML can be easily programmed via an intuitive web interface without coding, for quick installation, or with advanced programming languages such as Python, C# and C++ for more complex tasks. This makes the FR3-WML suitable for a wide range of applications, from assembly to welding. Would you like to integrate the FR3-WML into a complete solution? We can help with that, contact us to discuss the possibilities.

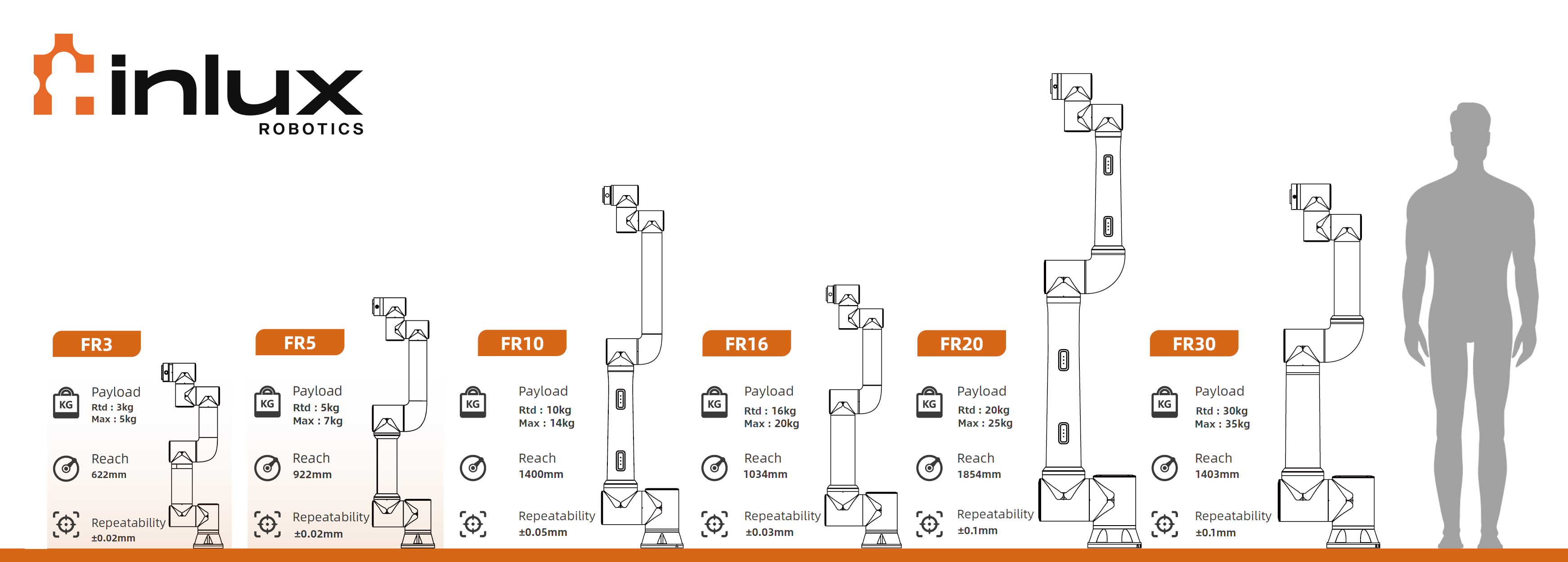

FR3/FR5 vs FR3-WML:

The FR3-WML combines mobility with maximum freedom of movement. Designed for welding work, it is lighter than the standard FR3/FR5 and therefore easy to move. With ±360° rotation on the 6th axis, it welds effortlessly around pipes and complex shapes. Even outdoor welding proves the FR3-WML’s strength in applications that require extra rotational freedom.

Ordering:
Send the order via the website or send us an order/quotation request via: support@inluxrobotics.nl

Prices exclude VAT:
0% VAT for companies in the EU, excluding the Netherlands, intra-community delivery.

Delivery time:
1-2 working days if in stock, 14-28 working days on order.

Specifications:
Payload: 3 kg
Reach: 922 mm
Accuracy: ±0.05 mm
Degrees of Freedom: 6
Axis 6 Limit: +360°, -360°
Maximum Angular Speed: 180°/s
Maximum TCP Speed: 1 m/s
IP Classification: IP54/IP65
Noise: <65dB
I/O Ports - On Controller (DI,DO,AI,AO): 16,16,2,2
I/O Ports - On Cobot Head (DI,DO,AI,AO): 2,2,1,1
Communication: I/O, TCP/IP, Modbus TCP/RTU, Profinet, EtherCAT, Ethernet/IP, CC-Link
Footprint: 128 mm
Weight: 11 kg
Operating Temperature: 0-45 degrees
Operating Humidity: 90% RH
Materials: Aluminium, Steel

Included:
- Fairino FR3-WML Cobot

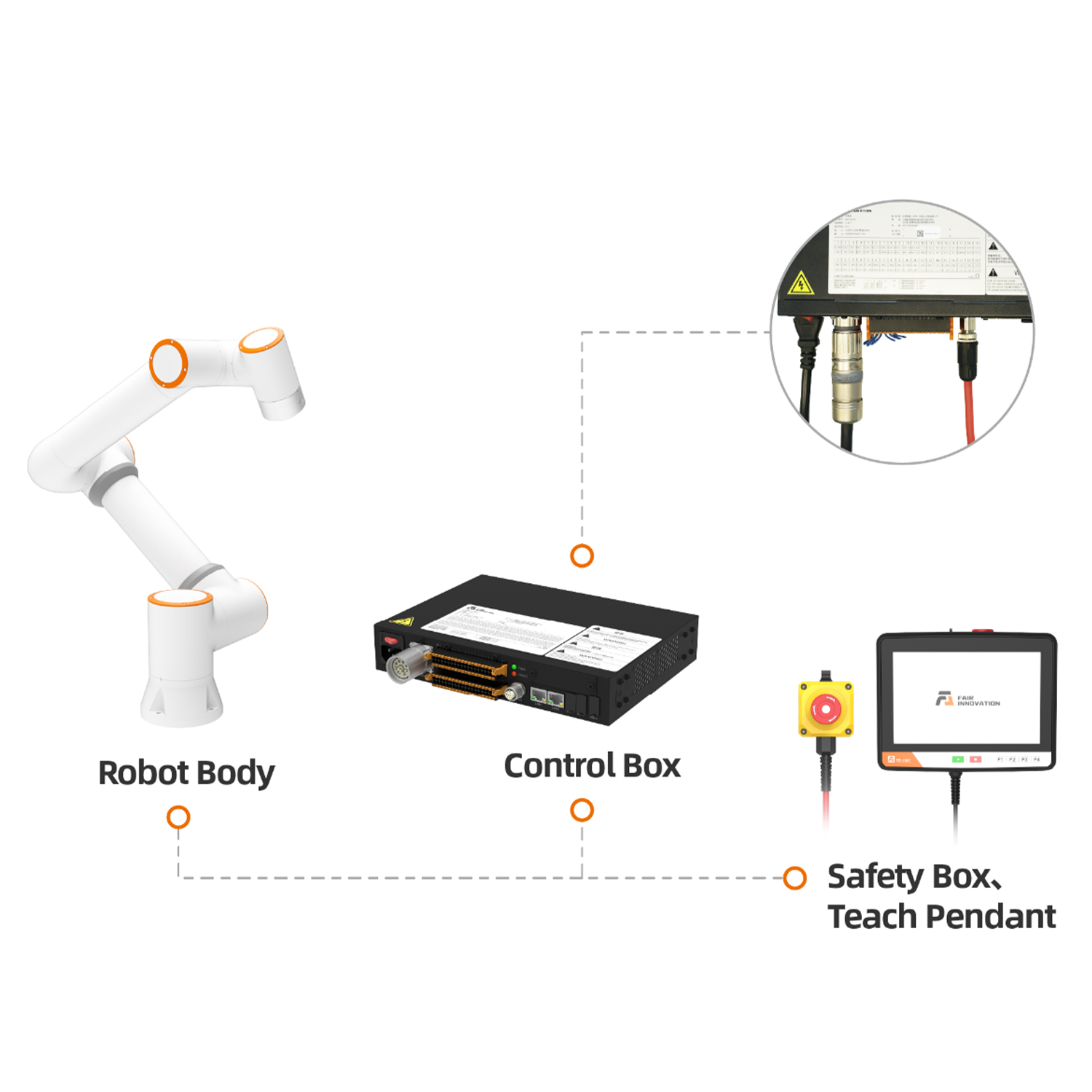

- Control Box

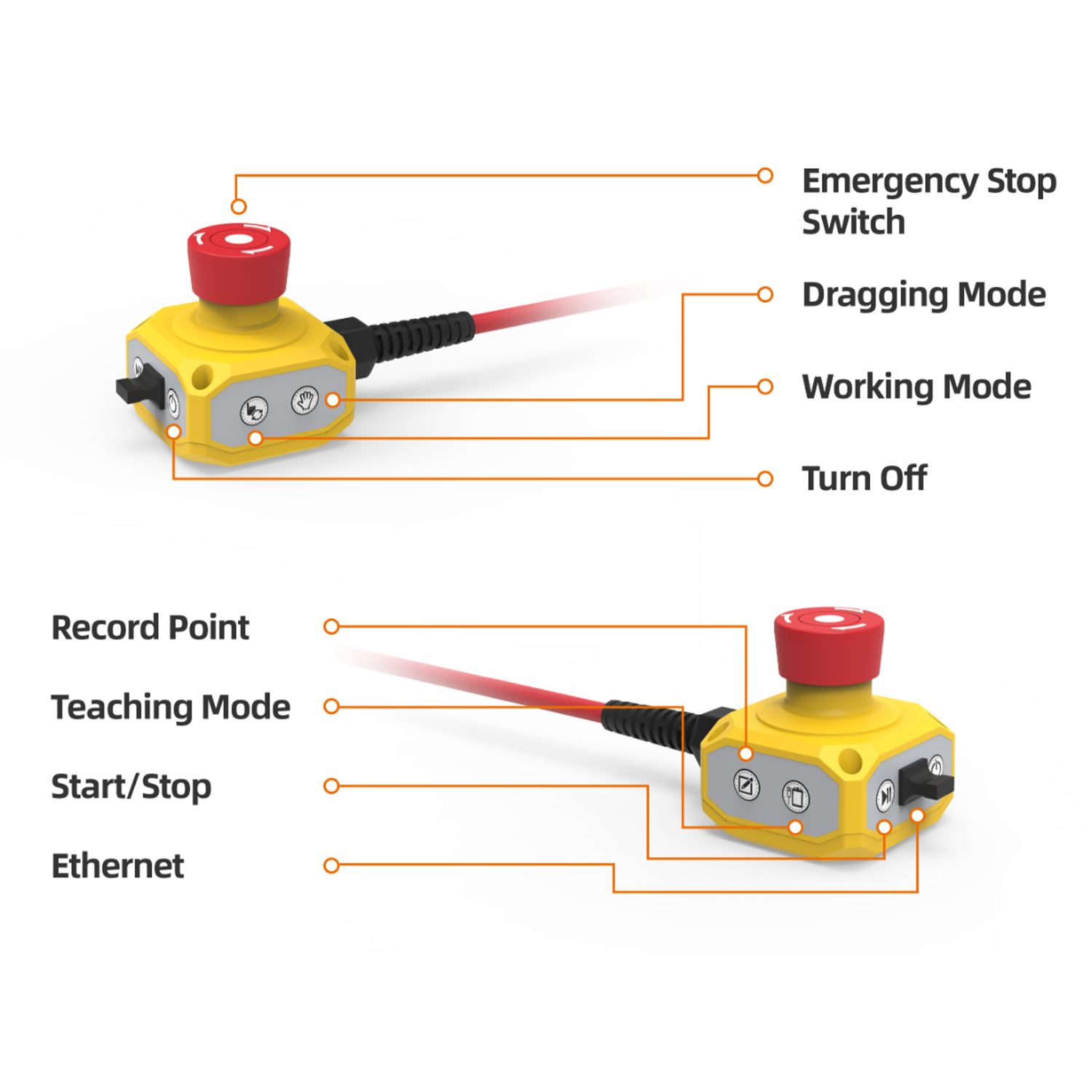

- Safety Box
- EU Power Cable
